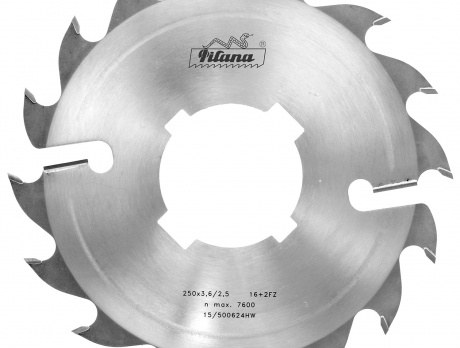

94 FZ +2
Material: Natural solid – soft and hard wood
Application: Multirip sawing of massive natural woods
Machine: Multirip saw, for single shaft, double shaft and splitting machine
- universal rip saw blades for longitudinal cutting of all types of wood, dry and wet, with standard quality cutting edge and lower height of the cut
- application: for multirip machines for primary processing of wood and pallet production
| D | S | s | d | z | hmax | dp max | Bore | C1xA1 | C2xA2 |
|---|---|---|---|---|---|---|---|---|---|
| 180 | 2,6 | 1,6 | 30 | 16+2 | 40 | 60 | 70 | 18x80 | 20x83 |
| 200 | 2,8 | 1,8 | 30 | 16+2 | 40 | 100 | 75 | 14x85 | 22x90 |
| 250 | 3,6 | 2,5 | 70, 80 | 16+2 | 50 | 130 | 80 | 14x90 | 22x93 |
| 300 | 4,0 | 2,8 | 70, 80 | 18+2 | 70 | 130 | |||
| 315 | 4,0 | 2,8 | 80 | 18+2 | 70 | 150 | |||
| 350 | 4,0 | 2,8 | 70, 75, 80 | 20+2 | 75 | 180 | |||
| 400 | 4,0 | 2,8 | 80 | 24+2 | 80 | 210 |
Explanation: D-blade diameter (mm), S-tooth width [mm], s-body thickness [mm], d-bore [mm], z-number of teeth, hmax-maximum cut height [mm], dp max-maximum bore diameter [mm]
The central bore of all saw blades can be enlarged up to: dmax = dp max – 30 mm
In case that you did not find the type of saw blades which you require in our catalogue, please contact us. We will make them upon your specification.
