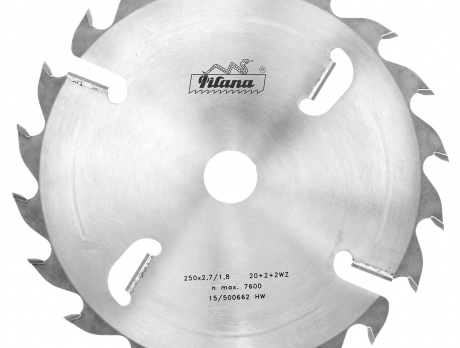

94.1 WZ – EFFECTIVE

thin multirip saw blades for longitudinal cutting of all types of wood, especially planks and stronger boards. Decrease in weight will positively show in energy savings and increased yield
WZ tooth geometry ensures a smooth, stable cut with a superior quality of the cutting edge, it is suitable for use in higher quality type of wood
application: for multirip machines

D	S	s	d	z	h_max	d_{p max}
250	2,7	1,8	30	20+2+2	65	110
300	2,7	1,8	30	24+2+2	80	120
350	3,5	2,5	30	24+2+2+2	105	120

Explanation: D-blade diameter (mm), S-tooth width [mm], s-body thickness [mm], d-bore [mm], z-number of teeth, h_max-maximum cut height [mm], d_{p max}-maximum bore diameter [mm]

In case that you did not find the type of saw blades which you require in our catalogue, please contact us. We will make them upon your specification.
