94.1 FZ – TOS, RAIMANN, COSTA

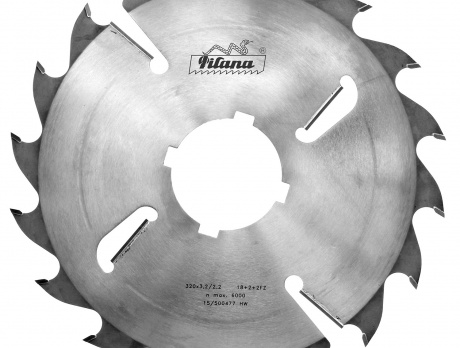

specially constructed multirip saw blades for longitudinal cutting of all types of wood, dry and wet, with a standard quality of the cutting edge for multirip machines by TOS SVITAVY
possibility to rip wood up to the clamping ﬂange of the saw blade without losing body stability of the saw blade with a large side strain and thus ensuring maximum utilisation of the machine. With spiral design of the keyways, it also oﬀers the possibility of a smoother entering into the cut

D	S	s	d	z	h_max	d_{p max}	Bore	4x C1xA1
300	3,2	2,2	80	18+2+2	90	105	80	13x90
320	3,2	2,2	80	18+2+2	100	105
350	4,0	2,8	80	18+2+2	115	105
400	4,0	2,8	80	20+2+2	140	105
450	4,4	3,2	80	24+2+2	165	105

Explanation: D-blade diameter (mm), S-tooth width [mm], s-body thickness [mm], d-bore [mm], z-number of teeth, h_max-maximum cut height [mm], d_{p max}-maximum bore diameter [mm]

The central bore of all saw blades can be enlarged up to: d_max = d_pmax – 30 mm

In case that you did not find the type of saw blades which you require in our catalogue, please contact us. We will make them upon your specification.

Tool advisory centre for circular saw blades, band saws for wood cutting

Have you not found the most suitable tool for your application?

Please, contact us, we will make them for you.
