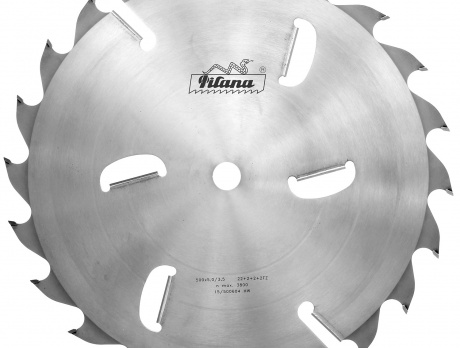

94.1 FZ – MASSIVE

extra strong multirip saw blades for longitudinal cutting of all types of wood, dry and wet, with a standard quality of the cutting edge. Designed for extreme cutting condi-tions thanks to the very stable and massive saw body which eliminates side strain and ensures stability of the saw blade

D	S	s	d	z	h_max	d_{p max}	Bore	C1xA1	C2xA2
315	4,0	2,8	70,80	18+2+2	90	120	70	13x80	20x83
350	4,0	2,8	70,75,80	20+2+2	105	120	75	14x85	22x90
400	4,2	3,0	30	20+2+2	120	145	80	14x90	22x93
450	5,0	3,5	30	20+2+2	135	160
500	5,0	3,5	30	22+2+2+2	175	130
550	5,5	3,5	30	24+2+2+2	190	150
600	6,2	4,0	30	26+2+2+2	205	170
700	6,5	4,5	30	28+2+2+2	235	210
800	7,5	5,0	30	24+2+2+2+2	300	170

Explanation: D-blade diameter (mm), S-tooth width [mm], s-body thickness [mm], d-bore [mm], z-number of teeth, h_max-maximum cut height [mm], d_{p max}-maximum bore diameter [mm]

The central bore of all saw blades can be enlarged up to: d_max = d_pmax – 30 mm

In case that you did not find the type of saw blades which you require in our catalogue, please contact us. We will make them upon your specification.
