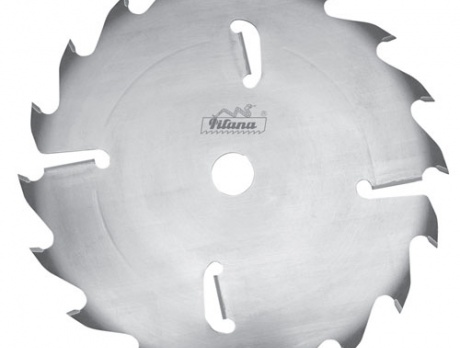

94.1 FZ +2+2

universal rip saw blades for longitudinal cutting of all types of wood, dry and wet, with standard quality cutting edge and lower height of the cut
application: for multirip machines for primary processing of wood and pallet production

D	S	s	d	z	h_max	d_{p max}	Bore	C1xA1	C2xA2
250	3,2	2,2	70,80	16+2+2	60	105	70	13x80	20x83
300	3,2	2,2	70,80	18+2+2	80	120	75	14x85	22x90
300	3,2	2,2	30	24+2+2	80	120	80	14x90	22x93
315	3,2	2,2	70,80	18+2+2	85	120
350	3,6	2,5	70,75,80	20+2+2	105	120
350	3,6	2,5	30	24+2+2	105	120
400	4,0	2,8	30	18+2+2	120	145
400	4,0	2,8	70,80	24+2+2	120	145
450	4,4	3,2	70,80	28+2+2	135	160
450	4,4	3,2	30	20+2+2	135	160
500	4,4	3,2	30	22+2+2	150	180
500	4,4	3,2	70	28+2+2	150	180

Explanation: D-blade diameter (mm), S-tooth width [mm], s-body thickness [mm], d-bore [mm], z-number of teeth, h_max-maximum cut height [mm], d_{p max}-maximum bore diameter [mm]

The central bore of all saw blades can be enlarged up to: d_max = d_pmax – 30 mm

In case that you did not find the type of saw blades which you require in our catalogue, please contact us. We will make them upon your specification.
