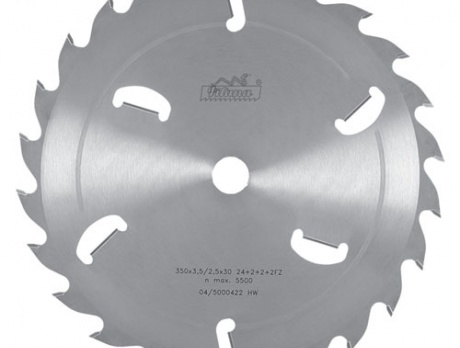

94.1 FZ +2+2+2

universal rip saw blades for longitudinal cutting of all types of wood, dry and wet, with a standard quality of the cutting edge
6 wiper slots enable excellent saw stability even when cutting very long round pieces of wood or prisms
application: for multirip machines for primary processing of wood and pallet production

D	S	s	d	z	h_max	d_{p max}
400	4,0	2,8	30	24+2+2+2	130	125
400	4,0	2,8	30	28+2+2+2	130	125
450	4,4	3,2	30	20+2+2+2	150	130
500	4,4	3,2	30	22+2+2+2	185	130
550	5,0	3,5	30	24+2+2+2	195	150
550	5,0	3,5	30	32+2+2+2	195	150
600	5,0	3,5	30	26+2+2+2	205	170

Explanation: D-blade diameter (mm), S-tooth width [mm], s-body thickness [mm], d-bore [mm], z-number of teeth, h_max-maximum cut height [mm], d_{p max}-maximum bore diameter [mm]

The central bore of all saw blades can be enlarged up to: d_max = d_pmax – 30 mm

In case that you did not find the type of saw blades which you require in our catalogue, please contact us. We will make them upon your specification.
