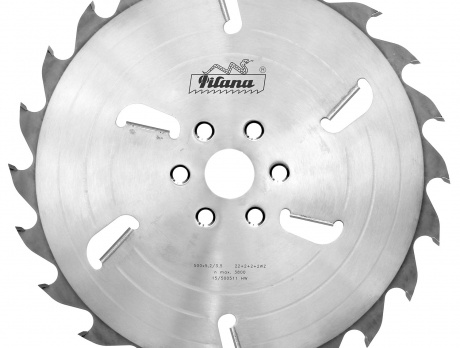

94.1 Angle Tilting Saws

specialy designed rip saw blades for angle tilting saws
the number of teeth is calculated for the maximum cutting height
clearance teeth exactly match the ﬂange of individual machine types which eliminates cracking of saw blades while ensuring maximum amount of chip removal from the cut
the reinforcement and thermal treatment of the saw blades ensures their perfect action in the horizontal cut conditions

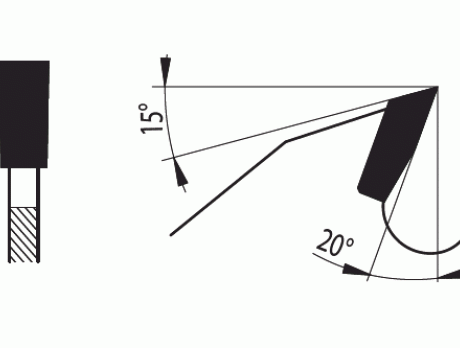

the tooth geometry is optimised for maximum cutting speed of the saw blades

D	S	s	d	z	h_max
STROJCAD - WZ
400	4,2	3,0	30+6/17/96	20+2+2	120
400	4,2	3,0	55+6/17/112	20+2+2	120
450	5,0	3,5	55+6/17/112	20+2+2	145
500	5,2	3,5	30+6/17/96	22+2+2+2	170
500	5,2	3,5	30+6/17/112	22+2+2+2	170
550	5,5	3,5	30+6/17/96	24+2+2+2	205
550	5,5	3,5	55+6/17/112	24+2+2+2	195
WEP - FZ
500	5,0	3,5	30+8/11/100+2/10/60	22+2+2+2	155
500	5,0	3,5	30+8/11/150+2/10/60	22+2+2+2	155
550	5,5	3,5	30+8/11/100+2/10/60	22+2+2+2	180
550	5,5	3,5	30+8/11/150+2/10/60	24+2+2+2	180

Explanation: D-blade diameter (mm), S-tooth width [mm], s-body thickness [mm], d-bore [mm], z-number of teeth, h_max-maximum cut height [mm]

We can produce in dimensions from ø150 to ø1000.

In case that you did not find the type of saw blades which you require in our catalogue, please contact us. We will make them upon your specification.
