87-13 TFZ N
Material: Non-ferrous metals and plastics
Application: Profiles, mouldings, solid materials, tubes
Machine: Manual feed machines
- cutting of non-ferrous metals, profiles and plastics
suitable for angle cutting and cross cutting
saw blades are equipped with Cu rivets
| D | S | s | d | z |
|---|---|---|---|---|
| 250 | 3,2 | 2,5 | 30 | 60 |
| 300 | 3,2 | 2,5 | 30 | 72 |
| 350 | 3,6 | 2,8 | 30 | 84 |
| 400 | 3,6 | 2,8 | 30 | 96 |
| 420 | 4,0 | 3,2 | 30 | 96 |
| 450 | 4,0 | 3,2 | 30 | 108 |
| 500 | 4,0 | 3,2 | 30 | 120 |
Explanation: D-blade diameter (mm), S-tooth width [mm], s-body thickness [mm], d-bore [mm], z-number of teeth

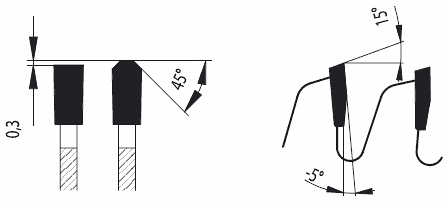

All saw blades suitable for cutting non-ferrous metals and plastics include pinholes. Please see parameters of pinholes on the picture aside.
If requested by customer, we can also produce version without pinholes.
In case that you did not find the type of saw blades which you require in our catalogue, please contact us. We will make them upon your specification.
