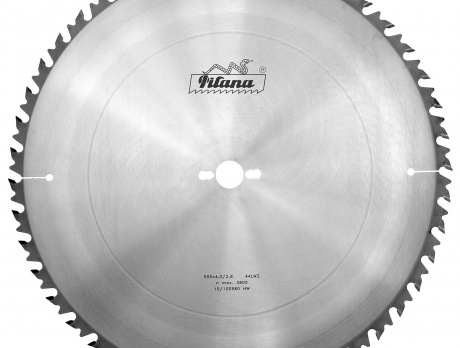

83-35 LWZ
- cutting along and across the grain of natural solid wood

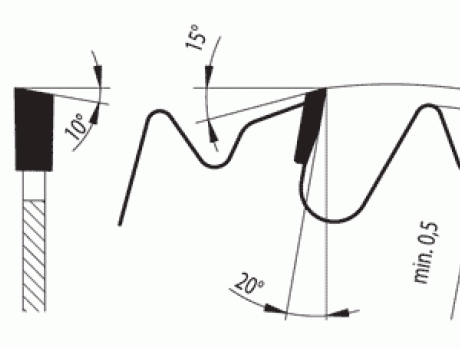

- saw blade geometry includes a chip thickness limiter
- anti-kick back design
| D | S | s | d | z |
|---|---|---|---|---|
| 250 | 3,2 | 2,2 | 30 | 24 |
| 300 | 3,2 | 2,2 | 30 | 28 |
| 315 | 3,2 | 2,2 | 30 | 28 |
| 350 | 3,6 | 2,5 | 30 | 32 |
| 400 | 3,6 | 2,5 | 30 | 36 |
| 450 | 4,0 | 2,8 | 30 | 40 |
| 500 | 4,0 | 2,8 | 30 | 44 |
| 600 | 5,2 | 3,5 | 30 | 54 |
Explanation: D-blade diameter (mm), S-tooth width [mm], s-body thickness [mm], d-bore [mm], z-number of teeth
In case that you did not find the type of saw blades which you require in our catalogue, please contact us. We will make them upon your specification.
