- 81-11 WZ

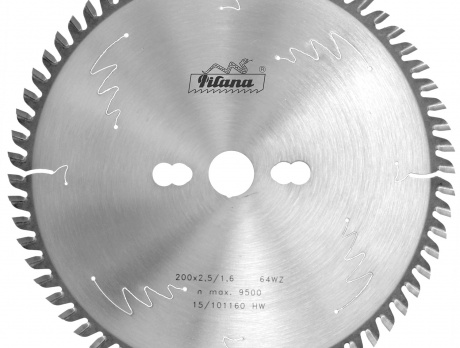

81-11 WZ
- high quality smooth cutting across the grain of natural wood
- cutting of plywood, veneer, unprocessed chipboard, wood based panels and exotic solid woods
| D | S | s | d | z |
|---|---|---|---|---|
| 160 | 2,5 | 1,6 | 20 | 48 |
| 180 | 2,5 | 1,6 | 20 | 56 |
| 200 | 2,5 | 1,6 | 20 | 64 |
| 250 | 3,2 | 2,2 | 30 | 72 |
| 250 | 3,2 | 2,2 | 30 | 80 |
| 300 | 3,2 | 2,2 | 30 | 96 |
| 350 | 3,6 | 2,5 | 30 | 108 |
| 400 | 3,6 | 2,5 | 30 | 120 |
| 400 | 3,8 | 2,8 | 30 | 108 |
| 450 | 4,2 | 3,0 | 30 | 120 |
| 500 | 4,0 | 2,8 | 30 | 144 |
Explanation: D-blade diameter (mm), S-tooth width [mm], s-body thickness [mm], d-bore [mm], z-number of teeth
In case that you did not find the type of saw blades which you require in our catalogue, please contact us. We will make them upon your specification.
